Basic Information

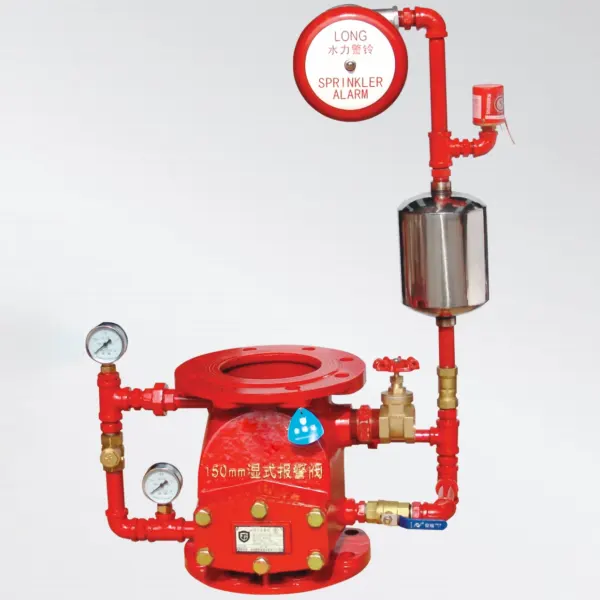

The ZSFZ wet alarm valve, together with other components such as pressure switches, water flow indicators, and sprinklers, forms the ZS wet-type automatic sprinkler fire extinguishing system, a widely used fixed fire suppression system. The system’s piping network is filled with pressurized water and remains in standby mode for long-term readiness. It is suitable for use in environments with temperatures ranging from 4°C to 70°C and must be installed vertically. When a fire occurs in the protected area, the ambient temperature rises, causing the temperature-sensitive element (glass bulb) of the sprinkler to break. The sprinkler automatically discharges water directly onto the fire and triggers an alarm, achieving the purposes of alerting, extinguishing, and controlling the fire. The device mainly consists of the alarm valve, hydraulic alarm bell, retard chamber, pressure switch, pressure gauge, drain valve, and test ball valve.
Technical Parameters
| Model | Rated Working Pressure (Mpa) | Nominal Diameter D (mm) | Flange Outer Diameter D (mm) | Flange Height L (mm) | Bolt Circle Diameter D (mm) | Bolt Quantity | Bolt Thread |
|---|---|---|---|---|---|---|---|
| ZSFZ100 | 1.2 | 100 | 220 | 270 | 180 | 8 | M16 |
| ZSFZ125 | 125 | 250 | 290 | 210 | 8 | M16 | |
| ZSFZ150 | 150 | 285 | 304 | 240 | 8 | M18 | |
| ZSFZ200 | 200 | 335 | 465 | 295 | 12 | M20 | |
| ZSFZ150-1.6 | 1.6 | 150 | 285 | 304 | 240 | 8 | M18 |
| ZSFZ250-1.6 | 200 | 405 | 500 | 355 | 12 | M24 |
Our Advantages
- Years of industry experience, specializing in firefighting and pipeline products
- Products certified with 3C and multiple management systems
- Capable of producing a full range of high-quality valves
- Integrated production and sales for efficient delivery
- Long-term partnerships with major enterprises and key projects
- Comprehensive after-sales service with technical support and solutions
FAQ
Q: Are the products certified?
A: All products are certified by 3C and multiple management systems, ensuring reliable quality.
Q: Which industries are the products suitable for?
A: Suitable for water supply, municipal projects, building construction, power plants, and industrial engineering.
Q: Do you offer customization?
A: Customization of size, material, and accessories is available according to client requirements.
Q: What after-sales services are provided?
A: Professional technical support, installation guidance, and maintenance services ensure long-term product use.
Q: How can I get a quotation?
A: Contact us via website form, phone, or email for detailed pricing.
Q: What is the delivery range?
A: Product sales and distribution networks cover the whole country, supporting bulk and scheduled delivery.
